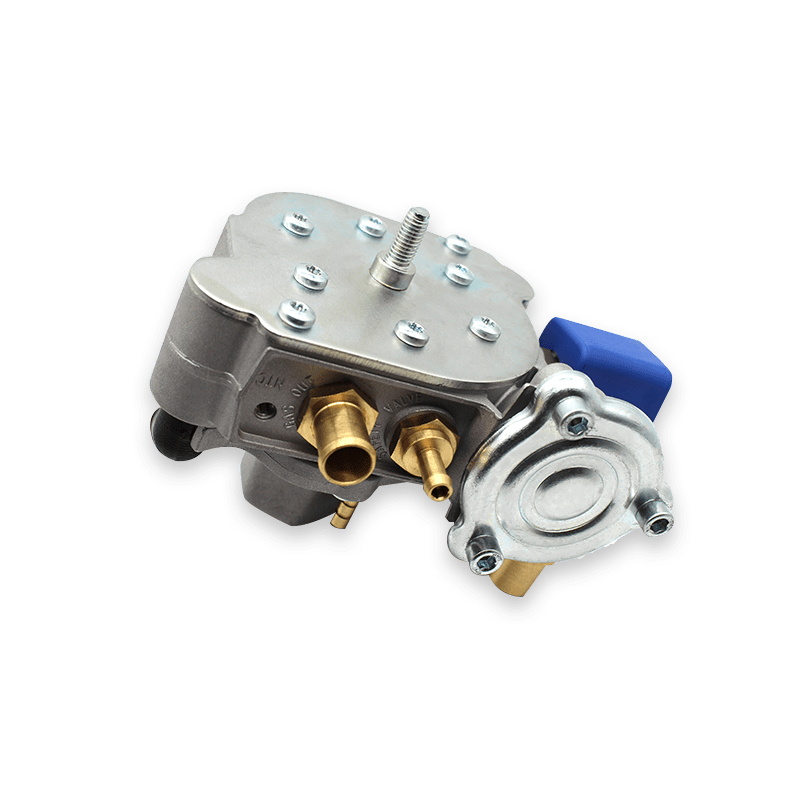

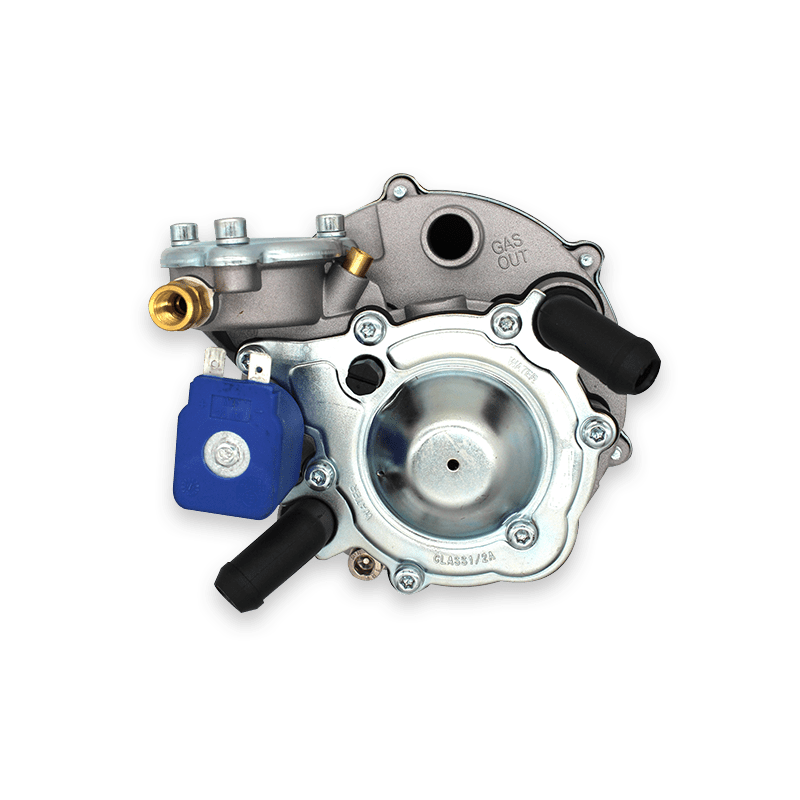

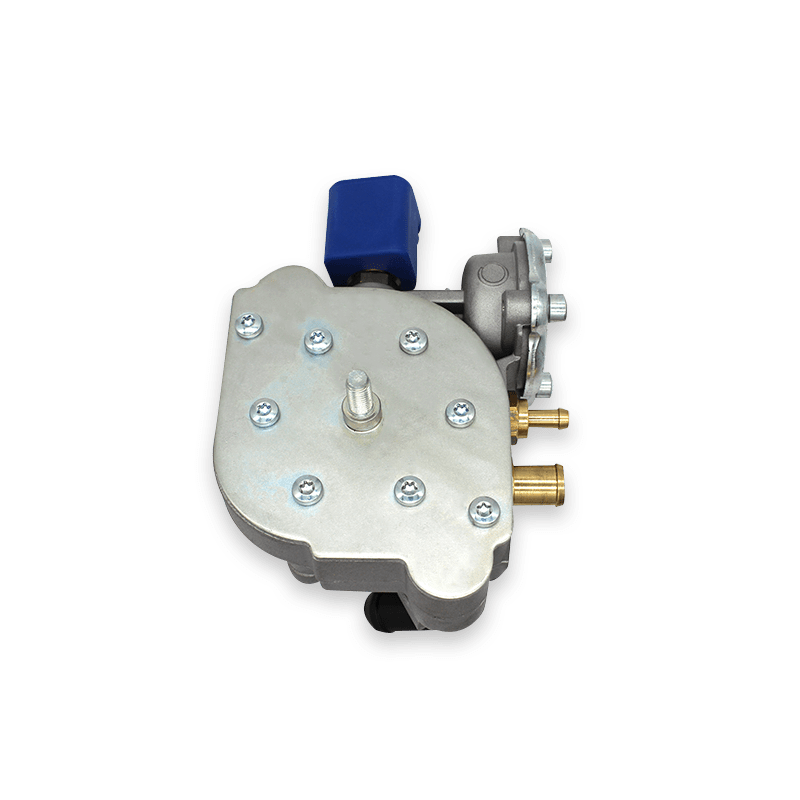

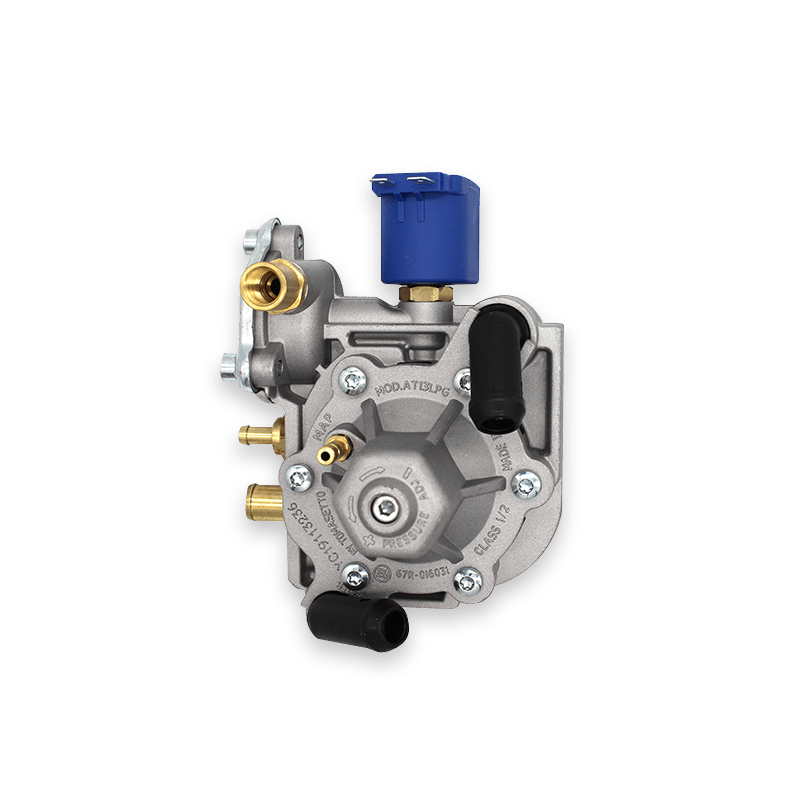

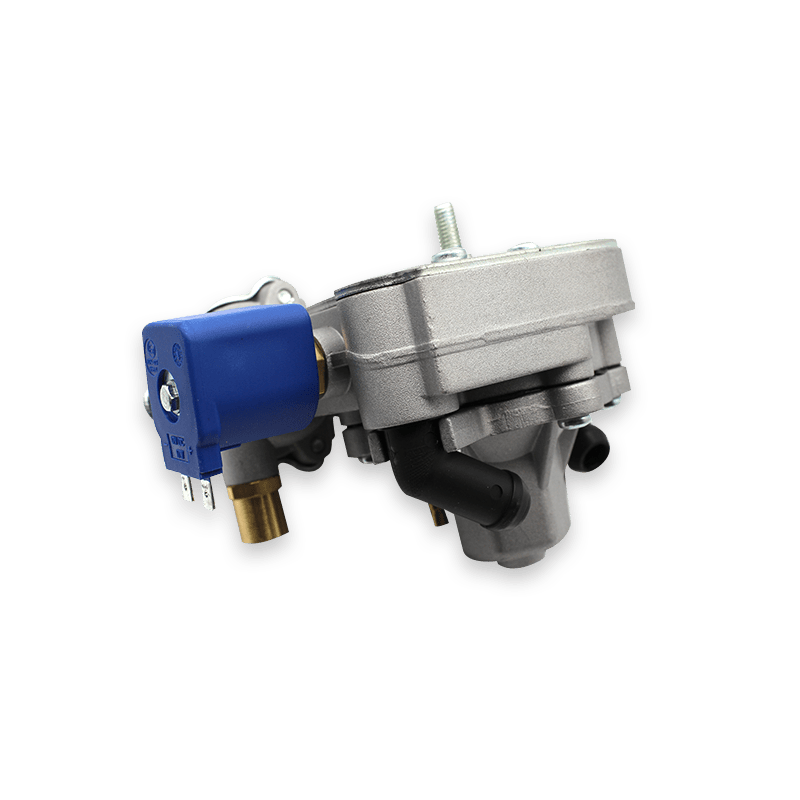

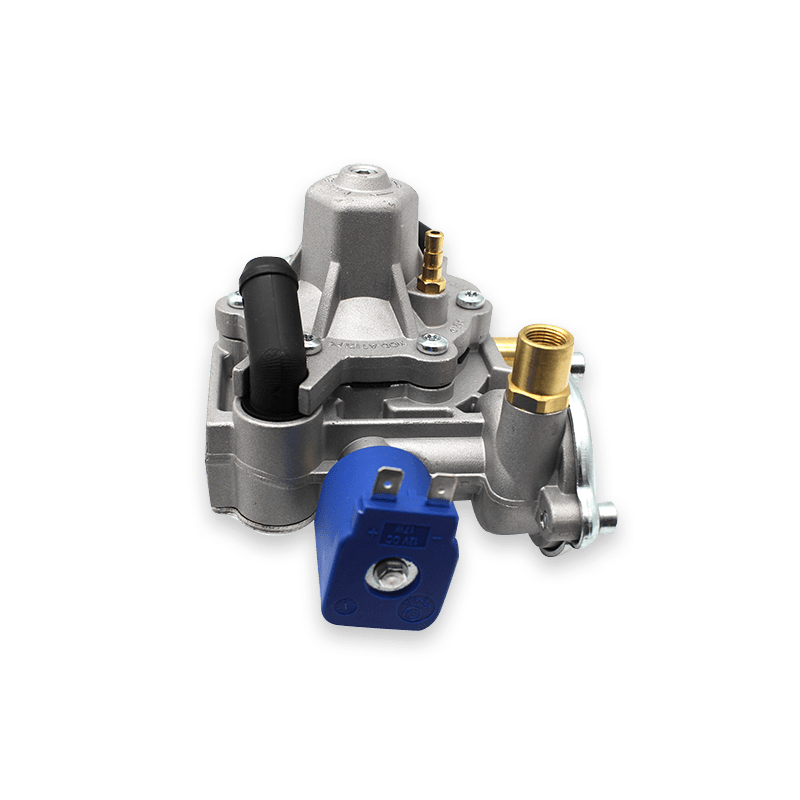

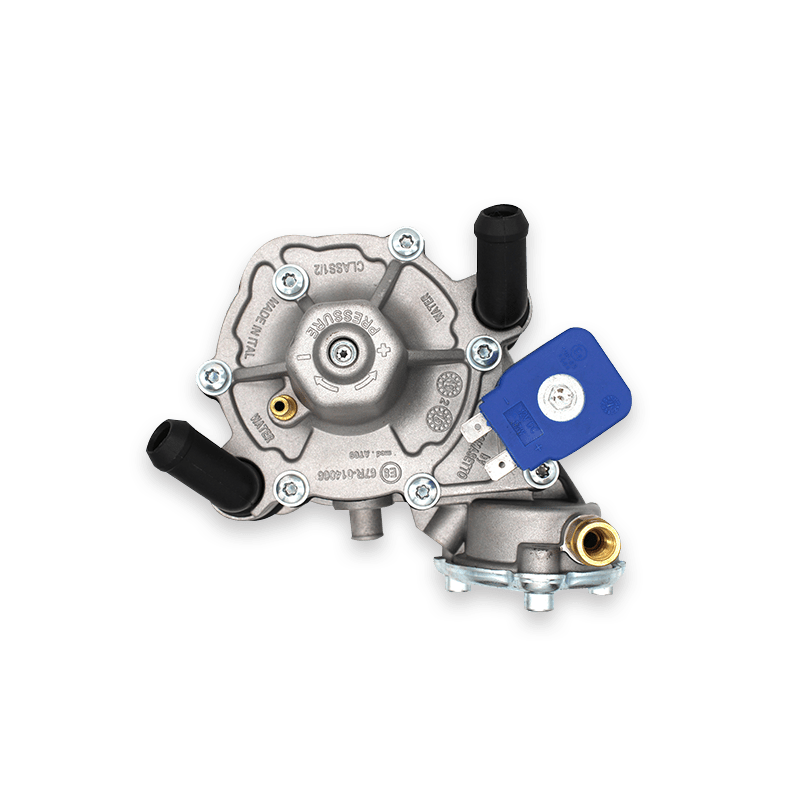

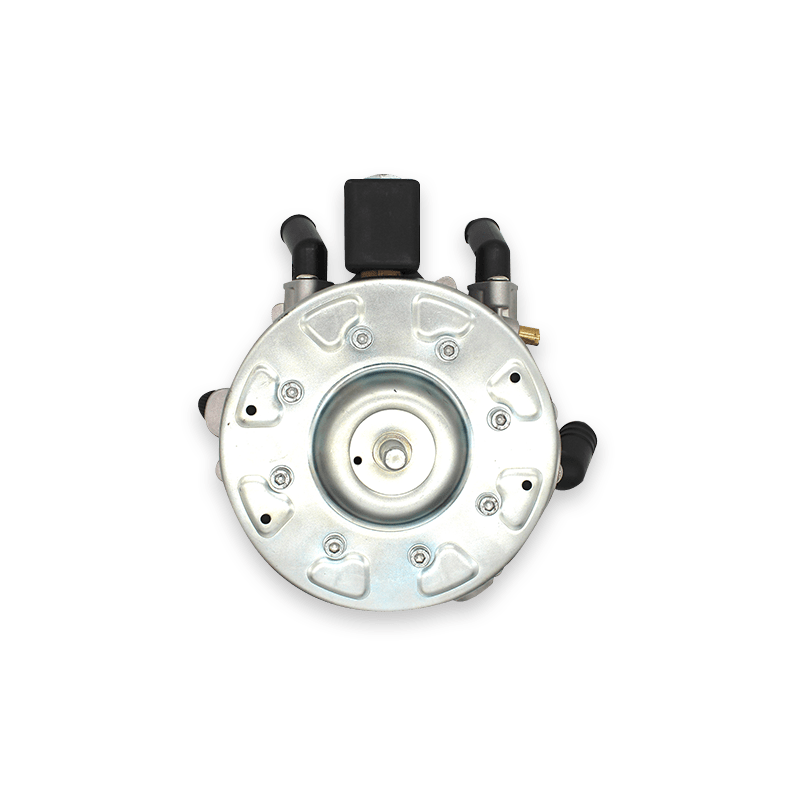

LPG Sequential regulator AT13 SUPER reducer

Jiaxing Lineng Autogas Equipment Co., Ltd.

MAIN FEATURES
1. single stage pressure reducer
2.equipped with a solenoid valve and an integrated filter unit at the inlet
3.permits very high peformance
4.allows big LPG flow rates and maintains a very stable exit pressure in every condition
5.easy to install and maintain

E-mail : [email protected] Phone : +86 135 1130 2945

Product Details

Material	Die-cast aluminium body
Weight	1.65KG
Dimensions (mm)	120x160x115 mm
Max inlet pressure	3 MPa (30 bar)
Outlet pressure	100 —— 250 kPa
Coil voltage	12 V DC
Coil power	17 W
Coil connection	Fast-on (amp on request)
Inlet connection	M12x1 pipe Ø 8 mm
Outlet connection	Fixed fitting Ø 13.5 mm
Engine power	up to 250 kW
LPG flow rate	up to 62 kg/h
Working temperature	-20° C/+120° C
